Fiber disc filters have become a widely adopted solution in modern water and stormwater treatment systems due to their high filtration efficiency, compact footprint, and strong adaptability to fluctuating water quality conditions. They are commonly used in rainwater harvesting systems, municipal drainage networks, industrial wastewater pretreatment, and sponge city infrastructure projects.

However, even though fiber disc filtration technology offers excellent performance in removing suspended solids, it is not immune to operational challenges. One of the most frequent issues encountered in real-world applications of fiber disc filters for water treatment is clogging.

When clogging occurs, it directly impacts hydraulic performance, reduces treatment efficiency, increases maintenance frequency, and may even lead to system downtime. Therefore, understanding the root causes behind clogging and implementing effective prevention strategies is essential for long-term system stability.

This article provides a detailed technical explanation of why clogging happens in fiber disc filter systems and how to prevent it through proper design, operation, and maintenance practices.

---

1. Understanding Fiber Disc Filter Systems in Water Treatment

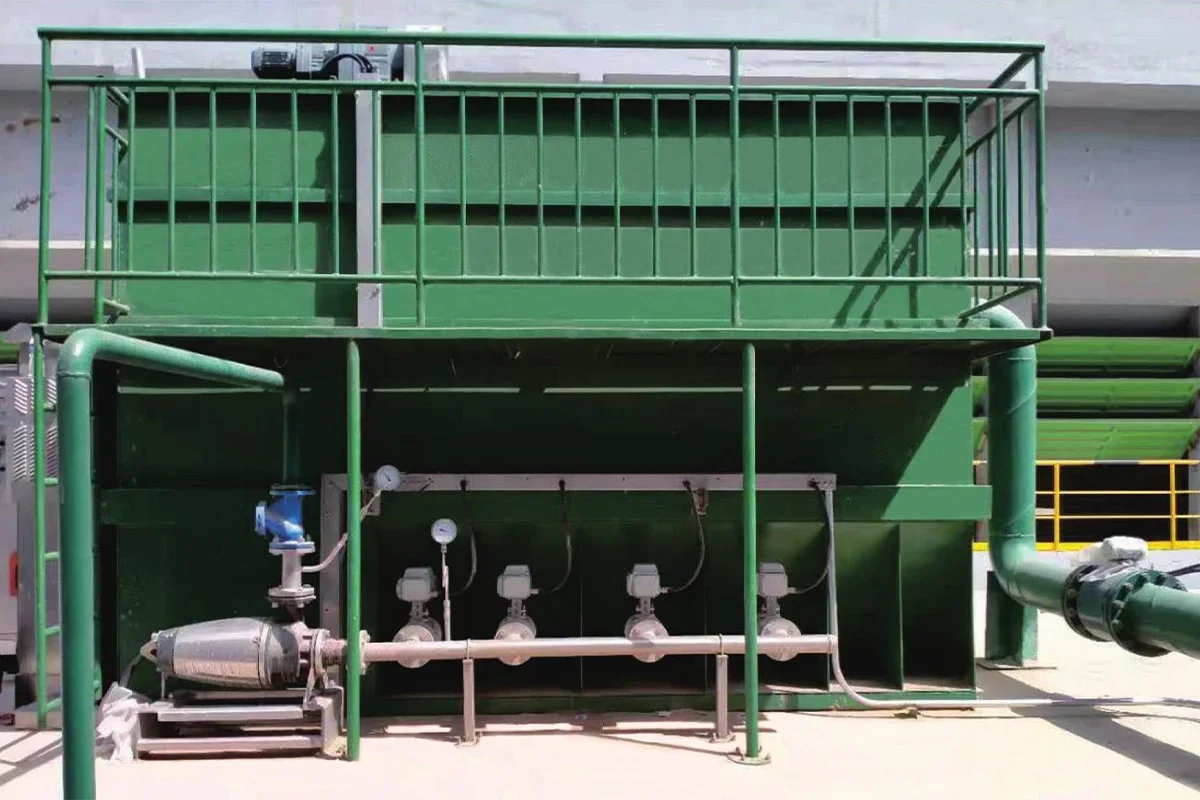

A typical fiber disc filter system is designed to remove fine suspended solids from water using high-density fiber media mounted on rotating discs. The system generally includes:

• Fiber disc filtration units

• Inlet distribution chamber

• Backwashing or self-cleaning mechanism

• Sludge discharge system

• Control and monitoring system

Working principle

In a fiber disc filtration system, raw water flows through the fiber media layer where suspended solids are retained on the surface and within the filter structure. Clean water passes through and exits the system. When solids accumulate, an automatic or semi-automatic backwashing process restores filtration capacity.

This makes fiber disc technology highly effective for stormwater filtration and rainwater treatment applications, especially where variable pollution loads are expected.

---

2. Why Fiber Disc Filters Get Clogged

Despite their efficiency, fiber disc filters in water treatment systems can experience clogging due to several operational and environmental factors.

2.1 High Suspended Solids Load in Influent Water

One of the primary causes of clogging in a fiber disc filter system is excessive suspended solids concentration.

Stormwater and industrial runoff often contain:

• Fine sand and silt

• Organic debris

• Microplastics

• Road dust and pollutants

When the influent exceeds the design capacity of the fiber disc filter unit, particles accumulate rapidly on the fiber surface, forming a dense filtration cake layer that restricts flow.

Impact:

• Increased pressure drop

• Reduced filtration efficiency

• Higher backwash frequency

2.2 Inadequate Pre-Treatment in Fiber Disc Filtration Systems

A properly designed fiber disc filtration system for rainwater treatment should always include pre-treatment stages.

Without them, large particles and debris enter directly into the filter, including:

• Leaves and organic waste

• Gravel and coarse solids

• Floating debris

Recommended pre-treatment components include:

• Coarse bar screens

• Grit removal tanks

• Oil-water separation units

• Sedimentation basins

Lack of pre-filtration significantly increases clogging risk in fiber disc systems.

2.3 Oil and Grease Contamination

In urban and industrial environments, oil contamination is a critical issue affecting fiber disc filters for stormwater treatment.

Oil behaves differently from solid particles:

• It adheres to fiber surfaces

• Forms hydrophobic layers

• Captures fine particles and accelerates fouling

This leads to gradual loss of permeability and reduced filtration efficiency.

Typical sources include:

• Parking lots

• Road runoff

• Industrial discharge areas

2.4 Insufficient Backwashing Performance

Backwashing is a key self-cleaning mechanism in any fiber disc filtration system.

However, clogging can still occur when:

• Backwash pressure is too low

• Cleaning cycle is improperly timed

• Sludge discharge is inefficient

• Mechanical components are worn

When backwashing is ineffective, particles accumulate progressively, leading to long-term fouling of the fiber disc filter media.

2.5 Hydraulic Overloading Beyond Design Capacity

Every fiber disc filter system is designed for a specific hydraulic loading rate.

When flow exceeds this design limit:

• Water velocity increases

• Particle retention becomes unstable

• Fine solids penetrate deeper into the fiber structure

This is especially common during heavy rainfall events in stormwater filtration systems that are undersized.

2.6 Deep Bed Fouling in Fiber Disc Media

Unlike surface clogging, deep bed fouling occurs when ultra-fine particles penetrate into the internal structure of the fiber media.

In fiber disc filters for rainwater harvesting systems, this leads to:

• Internal pore blockage

• Reduced regeneration efficiency

• Permanent loss of filtration capacity

This type of clogging is more difficult to reverse.

2.7 Lack of Regular Maintenance in Fiber Disc Filter Systems

Even high-quality fiber disc filtration equipment requires regular maintenance.

Common maintenance failures include:

• Delayed sludge removal

• Ignoring pressure differential signals

• Failure to inspect fiber discs

• Lack of preventive cleaning

Over time, these issues significantly increase clogging frequency.

---

3. How to Prevent Clogging in Fiber Disc Filters

Preventing clogging in fiber disc filter systems for water treatment requires a combination of engineering design, operational control, and maintenance strategy.

3.1 Improve Pre-Treatment Efficiency

The most effective prevention method is to reduce load before water enters the fiber disc filtration unit.

Recommended upstream systems:

• Mechanical bar screens

• Sedimentation tanks

• Oil separators

• Grit chambers

Benefit:
Reduces up to 70% of solids load entering fiber disc filters.

3.2 Proper System Design for Fiber Disc Filter Applications

A well-designed fiber disc filter system for stormwater management should consider:

• Peak rainfall flow rates

• Pollution load variability

• Buffer storage capacity

• Redundancy in filtration modules

Proper sizing ensures stable performance during extreme conditions.

3.3 Optimize Backwash Control Strategy

In modern fiber disc filtration systems, backwashing should be adaptive rather than fixed.

Best practices include:

• Pressure-based backwash triggering

• Automated cycle adjustment

• Sufficient hydraulic pressure for cleaning

This ensures continuous performance of the fiber disc filter media.

3.4 Control Oil and Fine Particle Sources

For fiber disc filters used in urban drainage systems, source control is essential:

• Install upstream oil interceptors

• Reduce industrial discharge contamination

• Implement road runoff pretreatment

This significantly improves filter lifespan.

3.5 Regular Sludge and Sediment Removal

Sediment accumulation is a major contributor to clogging in fiber disc filter units.

Recommended actions:

• Scheduled sludge discharge

• Periodic inspection of sediment chambers

• Prevention of anaerobic buildup

3.6 Monitor Pressure Differential in Real Time

Modern fiber disc filtration systems for wastewater treatment should include monitoring devices.

Key indicator:

• Pressure differential between inlet and outlet

An increasing trend signals early-stage clogging and allows preventive action before failure occurs.

3.7 Use High-Performance Fiber Disc Filter Media

Material quality plays a critical role in system performance.

High-quality fiber disc filter media should provide:

• Strong anti-fouling performance

• High mechanical strength

• Stable pore structure

• Chemical resistance

Inferior media significantly increases clogging risk.

3.8 Implement Preventive Maintenance Programs

Instead of reactive maintenance, operators should adopt preventive strategies for fiber disc filter systems, including:

• Routine inspections

• Scheduled cleaning cycles

• Component replacement planning

This reduces long-term operational costs and improves reliability.

---

4. Operational Best Practices for Fiber Disc Filter Systems

To ensure stable operation of fiber disc filters in water treatment applications, the following principles should be followed:

• Always include pre-treatment before filtration

• Avoid exceeding design flow capacity

• Maintain efficient backwashing performance

• Monitor system pressure continuously

• Control oil and fine solids at the source

• Conduct regular maintenance inspections

---

5. Conclusion

Clogging in fiber disc filter systems is a common but preventable issue. It is primarily caused by excessive suspended solids, inadequate pre-treatment, oil contamination, poor backwashing efficiency, hydraulic overload, and insufficient maintenance practices.

However, with proper engineering design and operational control, fiber disc filters for water and stormwater treatment can deliver long-term stable performance.

By implementing:

• Effective pre-filtration systems

• Proper hydraulic design

• Smart backwashing control

• Routine maintenance strategies

• Real-time monitoring systems

operators can significantly extend the service life of fiber disc filtration equipment while maintaining high treatment efficiency.

Ultimately, well-managed fiber disc filter systems for rainwater and wastewater treatment remain one of the most efficient and sustainable solutions for modern water management challenges.
